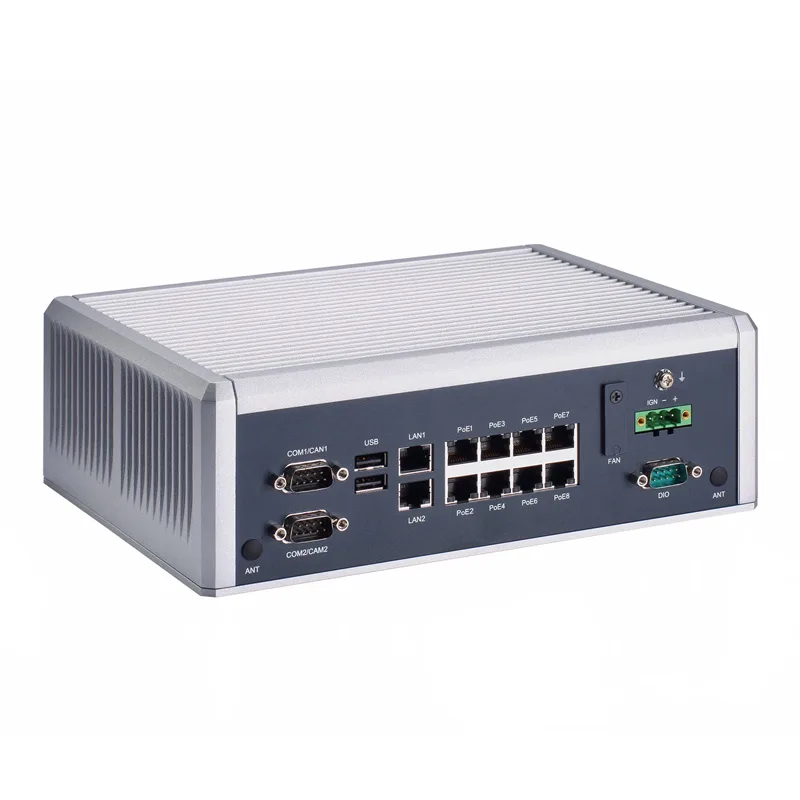

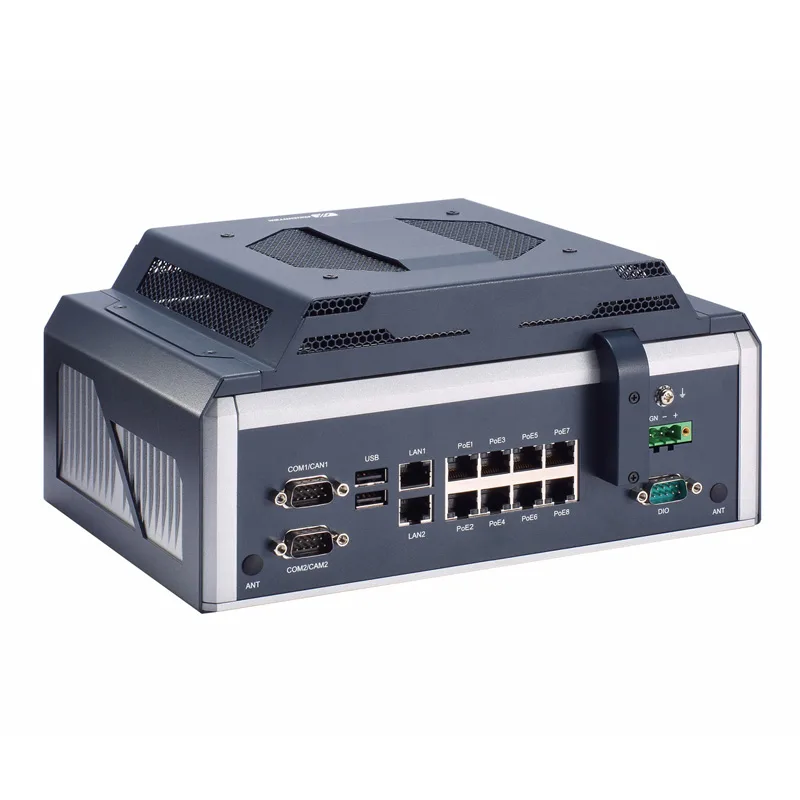

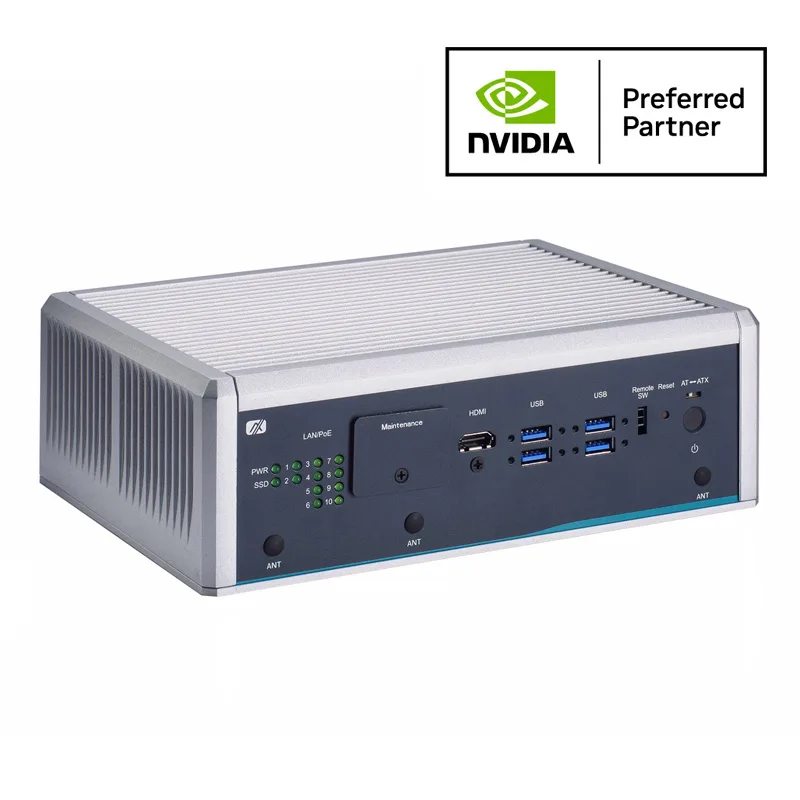

AXIOMTEK AIE900A-AO – Edge AI számítógép

AXIOMTEK AIE900A-AO Edge AI számítógép helyi AI-inferenciához és nagy számításigényű képfeldolgozáshoz. A tömör, egységesített leírás a legfontosabb műszaki jellemzőket és alkalmazási területeket emeli ki.

Főbb jellemzők

• Processzor/platform: NVIDIA® Jetson AGX Orin™ 32GB (200 TOPS)
• Hálózat: Seamless speed: 5G, Wi-Fi 6E, és 2.5 GbE együttesen
• Tápellátás: 24VDC gyújtásvezérlés (e-Mark compliance)
• Hálózat: támogatás 8 PoE és GMSL camera és LiDAR connectivity
• Üzemi környezet: 25°C – +50°C üzemi hőmérséklet
• Ipari védelem: támogatás device management és opcionális OTA deployment powered by Allxon

Ajánlott felhasználás

Gépi látás, robotika, AI-inferencia és intelligens automatizálás.

Részletes műszaki adatok

• NVIDIA® Jetson AGX Orin™ 32GB (200 TOPS)
• Seamless speed: 5G, Wi-Fi 6E, and 2.5 GbE combined
• 24VDC with Ignition (e-Mark compliance)
• Supports 8 PoE and GMSL for camera and LiDAR connectivity
• -25°C to +50°C operating temperature range
• Supports device management and optional OTA deployment powered by Allxon

Termékismertető

Accelerating AI Robotics and Video Analytics

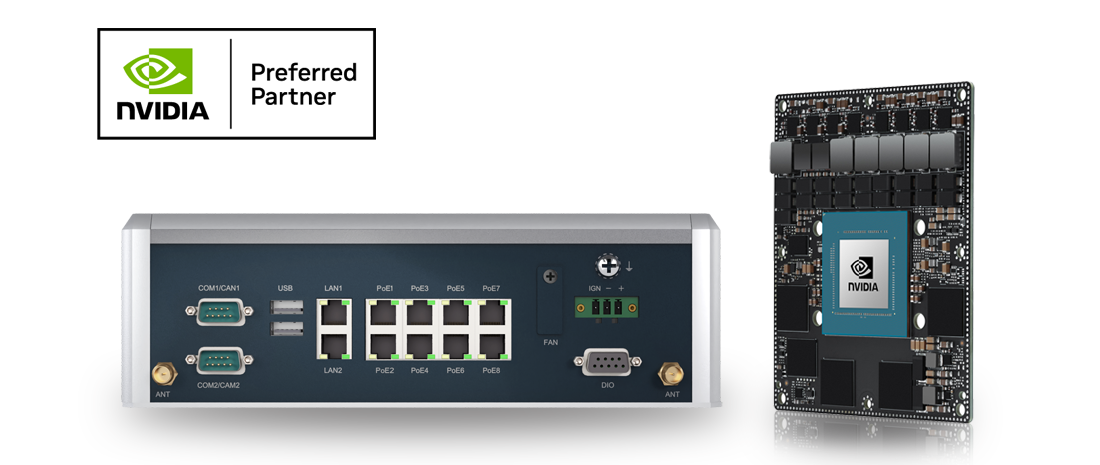

Axiomtek’s AIE900A-AO is based on the NVIDIA® Jetson AGX Orin™ platform that features an Arm® Cortex®-A78AE CPU delivering up to 200 TOPS of AI performance and integrates an advanced NVIDIA Ampere architecture GPU with 56 Tensor Cores. It’s capable of delivering server-class performance for edge AI applications.

Rich I/O Expansions

For the benefit of low-latency data transmission, and AIE900A-AO supports 2.5GbE for high-speed wired connectivity and M.2 Key B/Key E slots for 5G/Wi-Fi 6E. With the aid of CANBus for motion/direction control and 8-CH DI/DO for sensor control. AIE900A-AO enhances management efficiency. Equipped with eight PoE ports, the AIE900A-AO optimizes video analytics solutions by being installed together with 3D LiDAR and IP cameras.

Great Storage Capacity

The AIE900A-AO meets the storage requirements for large-scale computer vision tasks, with its onboard 32GB 256-bit LPDDR5 system memory and 64GB eMMC storage. It also features an SD Card slot and M.2 Key M 2280 slot for NVMe SSD.

Software

The AIE900A-AO bundles with the Linux Ubuntu 20.04 OS environment and supports the NVIDIA JetPack 5.0 software development kit. Accelerating the development of AI-assisted operations across industries. In addition, and the AIE900A-AO supports device monitoring and management services by Allxon, bringing 24/7 comprehensive remote management onto edge AI devices.

Rugged Design

For stable operation in mission-critical environments, the AIE900A-AO has a wide operating and temperature range of -30°C to +50°C and a power input of 24V DC with ignition control.
