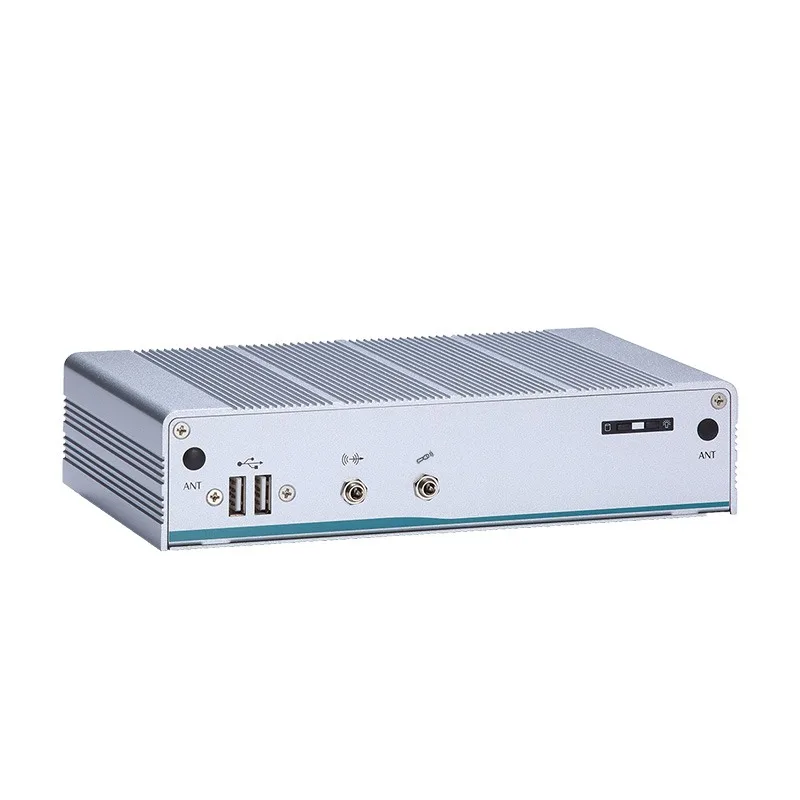

AXIOMTEK eBOX625-312-FL – ventilátor nélküli beágyazott számítógép
AXIOMTEK eBOX625-312-FL ventilátor nélküli beágyazott számítógép ipari edge és automatizálási feladatokhoz. A tömör, egységesített leírás a legfontosabb műszaki jellemzőket és alkalmazási területeket emeli ki.
Főbb jellemzők
- Processzor/platform: Intel® Celeron® N3350 vagy Pentium® N4200 integrált
- Memória: 204-pin DDR3L-1866 SO-DIMM legfeljebb 8GB memória
- Hálózat: támogatás 2 GbE LAN, 3 COM, és 6 USB
- Adattárolás: támogatás 1 2.5” SATA meghajtóhely és mSATA
- Bővíthetőség: 2 PCI Express Mini kártya foglalat és 1 SIM foglalat
- Üzemi környezet: -20°C – +65°C
Ajánlott felhasználás
Gépvezérlés, adatgyűjtés, ipari IoT és edge computing.
Részletes műszaki adatok
- Intel® Celeron® N3350 or Pentium® N4200 onboard
- 204-pin DDR3L-1866 SO-DIMM for up to 8GB of memory
- Supports 2 GbE LAN, 3 COM, and 6 USB
- Supports one 2.5” SATA drive bay and mSATA
- Trusted Platform Module (TPM) 2.0
- 2 PCI Express Mini Card slots and 1 SIM slot
- Operating temperature range: -20°C to +65°C
Termékismertető
The eBOX625-312-FL is powered by the Intel® Celeron® processor N3350 or Intel® Pentium® processor quad-core N4200. It has one 204-pin DDR3L-1866 SO-DIMM socket for up to 8GB of memory. With wide operating temperatures and rich I/O interfaces, the rugged embedded box computer is well-suited for Industrial Internet of Things (IIoT), retail equipment, factory automation, and many more. Axiomtek's eBOX625-312-FL offers great customer value with a combination of rich features, good computing performance, flexible connectivity options and effective pricing. It is designed with anti-vibration of up to 3Grms and a wide operating temperature range with non-turbo mode from -20°C to +65°C (-4°F to +149°F). Furthermore, this low power embedded system adopts an IP40-rated rugged aluminum extrusion and steel case, allowing it to withstand operations in harsh and hazardous environments.

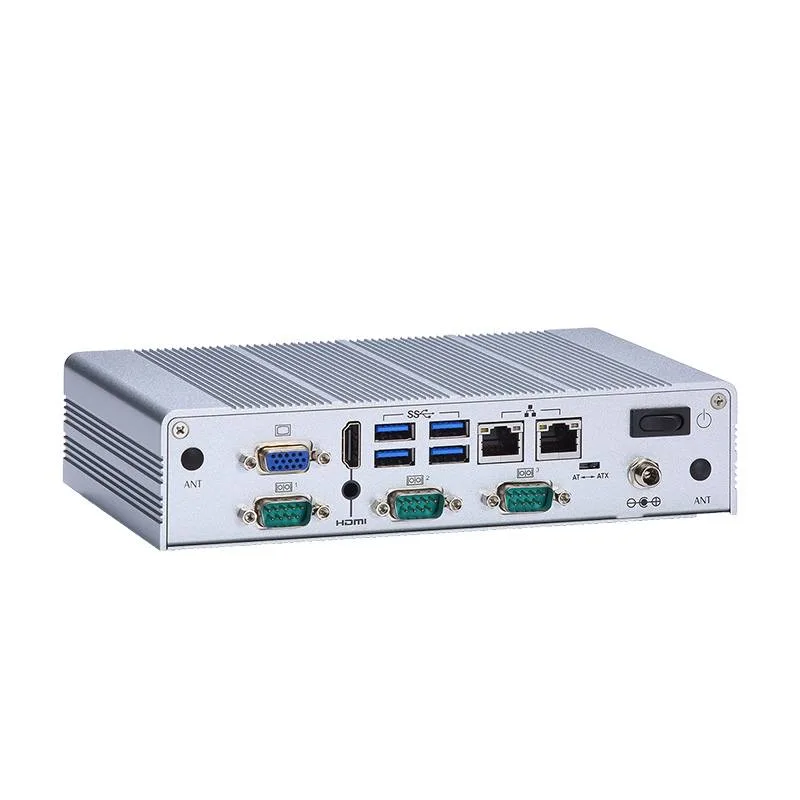

To satisfy a variety of embedded application needs, the eBOX625-312-FL comes with multiple I/O connectivity including two RS-232/422/485 ports, one RS-232 port, three USB 3.0 ports, two USB 2.0 ports, two Gigabit Ethernet ports, one audio, one VGA, and one lockable HDMI with a resolution of 4K ultra HD. Moreover, the fanless embedded box PC supports two full-size PCI Express Mini Card slots for WLAN/WWAN/mSATA modules and one SIM card socket. The Intel® Atom-based system also includes one 2.5" SATA HDD and one mSATA for extensive storage needs. Additionally, it supports a user-friendly front-access AT/ATX switch, allowing user to make adjustments with a single click.
