Leírás

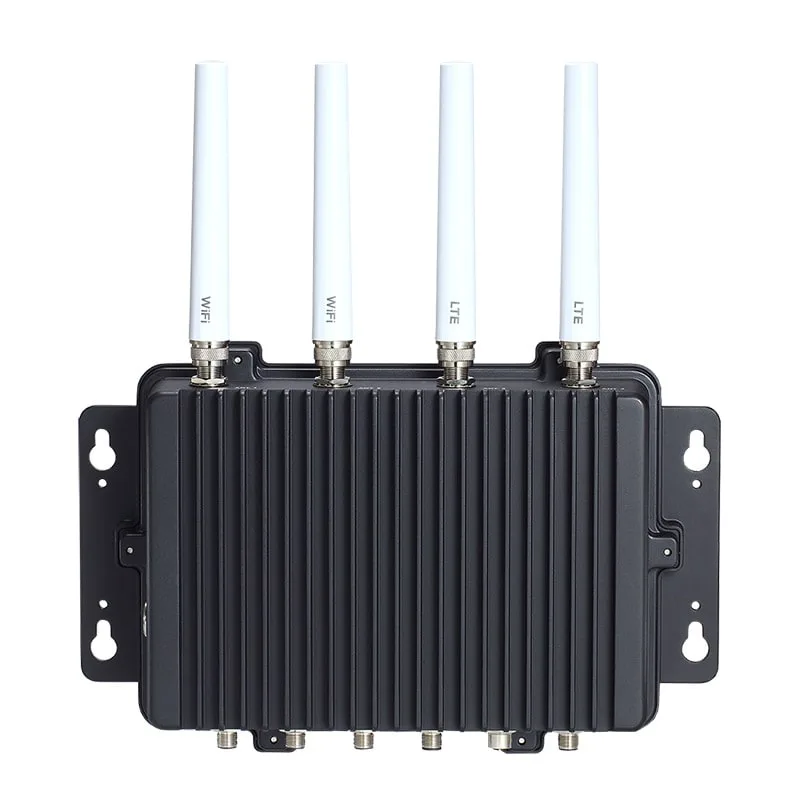

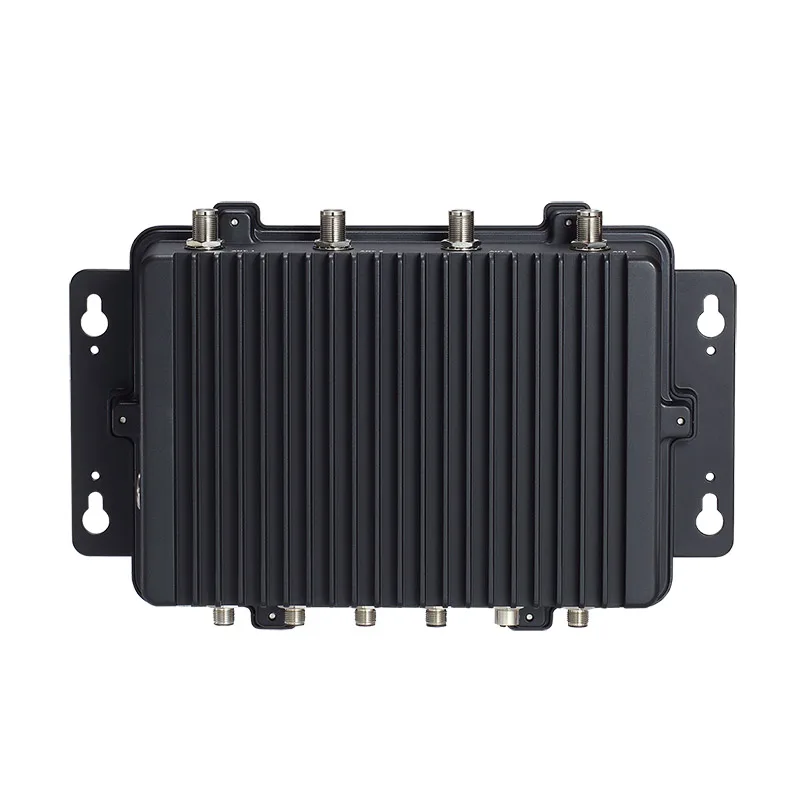

AXIOMTEK eBOX800-511-FL – ventilátor nélküli beágyazott számítógép
AXIOMTEK eBOX800-511-FL ventilátor nélküli beágyazott számítógép ipari edge és automatizálási feladatokhoz. A tömör, egységesített leírás a legfontosabb műszaki jellemzőket és alkalmazási területeket emeli ki.
Főbb jellemzők
- Ipari védelem: IP67-rating outdoor use
- Processzor/platform: Intel® Core™ i5-7300U & Celeron® 3965U integrált
- Tápellátás: 9 – 36 VDC széles tartomány tápbemenet
- Üzemi környezet: 30°C – +60°C üzemi hőmérséklet

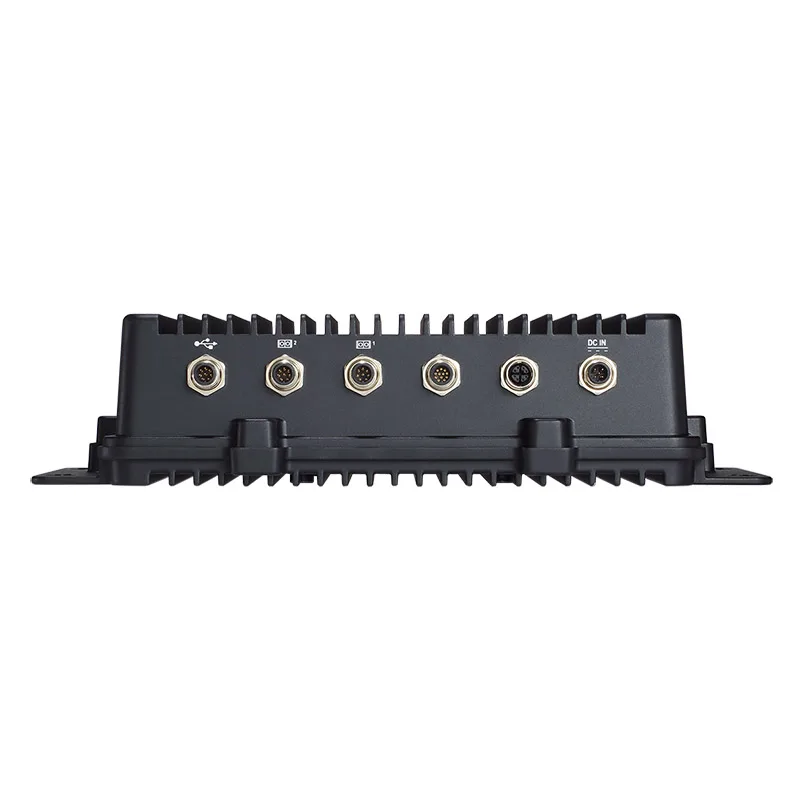

- Csatlakozók: Features M12 lockable I/Os
Ajánlott felhasználás
Gépvezérlés, adatgyűjtés, ipari IoT és edge computing.
Részletes műszaki adatok
- IP67-rating for outdoor use
- Intel® Core™ i5-7300U & Celeron® 3965U onboard
- 4 N-jack antenna openings with waterproof design
- 9 to 36 VDC wide range power input
- -30°C to +60°C operating temperature range
- Features M12 lockable I/Os
- Trusted Platform Module 1.2 (TPM 1.2)
Termékismertető
Drive to an Autonomous Future
The AIE900-XNX offers the ability to connect to oToBrite’s SerDes cameras, thereby providing navigation capabilities for compute-intensive applications such as AMR, obstacle detection, as well as simultaneous localization and mapping (SLAM).
Automotive-grade Cameras Support
oToBrite develops, designs, and manufactures all products from the vision-AI algorithms, ECU to automotive-grade cameras. Its vision-AI algorithm has been low-bit optimized across different platforms.
AI-Powered Box PC Using NVIDIA Jetson Edge AI Platform for 5G and AIoT Applications
AIE900-XNX adopts the NVIDIA® Jetson Xavier™ NX platform which has a powerful 6-core NVIDIA Carmel ARM v8.2 (64-bit) processor and 384-core NVIDIA Volta architecture GPU, delivering up to 21 TOPS accelerated computing performance for running modern AI workloads. The advanced edge AI computing platform supports high-speed networking capability functions such as the 5G module to drive AIoT innovation. The NVIDIA Jetson Xavier NX-based AIE900-XNX is suitable for vision AI applications including computer vision, vision guided robot, autonomous mobile robot (AMR), intelligent roadside unit, workplace safety, obstacle detection, traffic management, etc.
Supercomputer Performance
The NVIDIA® Jetson Xavier™ NX platform has a powerful 6-core NVIDIA Carmel ARM v8.2 (64-bit) processor and 384-core NVIDIA Volta architecture GPU, delivering up to 21 TOPS accelerated computing performance for running modern AI workloads.
AI Vision at the Edge
The AIE900-XNX supports multi-camera interface which can justify the respective selection depending on the application area and usage scenario. Four PoE interfaces for GigE cameras and LiDAR connectivity, and a MIPI CSI-2 to provide point-to-point image and video transmission.
Greater Storage
With one M.2 Key M 2280 SSD slot supporting PCIe signal and one Micro SD slot, the compact edge computing device AIE900-XNX is built for massive data processing and AI applications.
Meet the Ever-changing Demands
The AIE900-XNX has an extended operating temperature range of -30°C to +60°C and 9 to 36 VDC power input with optional ignition power control, making it an ideal solution for use in sedans, buses, and trucks with high temperature operation and varying voltage input requirements.
