Leírás
AXIOMTEK GOT712S – közlekedési panel PC
AXIOMTEK GOT712S közlekedési panel PC járműfedélzeti vezérlési és megjelenítési feladatokhoz. A tömör, egységesített leírás a legfontosabb műszaki jellemzőket és alkalmazási területeket emeli ki.
Főbb jellemzők
- Kijelző/megjelenítés: Sunlight readable 12.1" XGA TFT LCD 800 nits high fényerő
- Processzor/platform: ventilátor nélküli Intel Atom® processzor E3845 1.91 GHz
- Üzemi környezet: 40°C – +70°C széles hőmérséklet tartomány
- Tápellátás: tipikus 24 – 110 VDC széles tápbemenet tartomány, EN 50155
- Ipari védelem: EN 50155, EN 45545-2 tanúsított railway application
Ajánlott felhasználás
Fedélzeti HMI, utastájékoztatás és flottakezelés.
Részletes műszaki adatok
- Sunlight readable 12.1" XGA TFT LCD with 800 nits of high brightness
- Fanless with Intel Atom® processor E3845 1.91 GHz
- All lockable connector design
- Auto-dimming for different environments
- -40°C to +70°C wide temperature range
- Typical 24 to 110 VDC wide power input range, EN 50155
- Class S3 20ms power interruption protection
- EN 50155, EN 45545-2 certified for railway application
Termékismertető

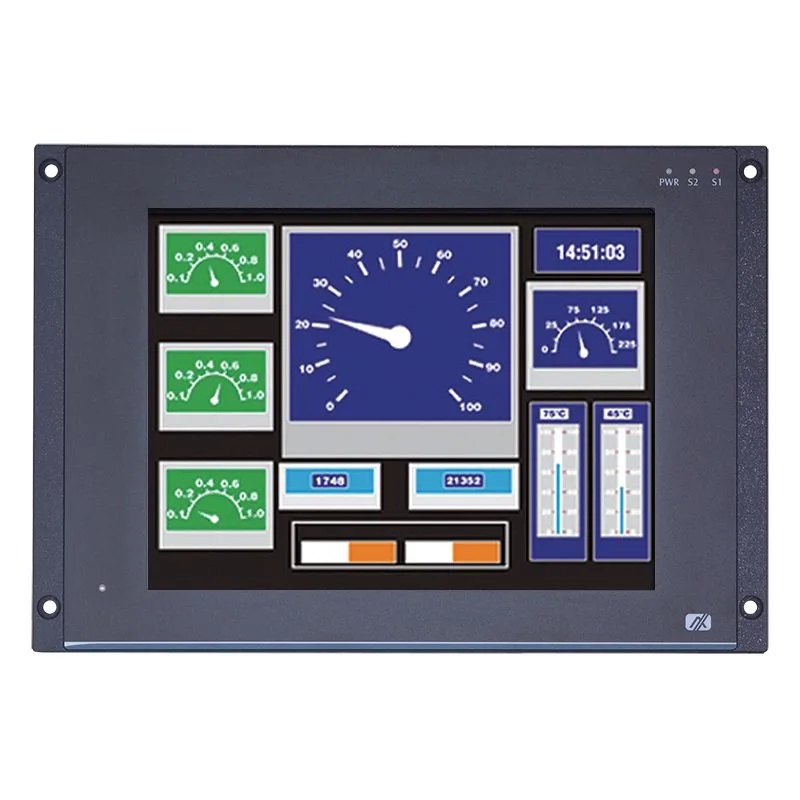

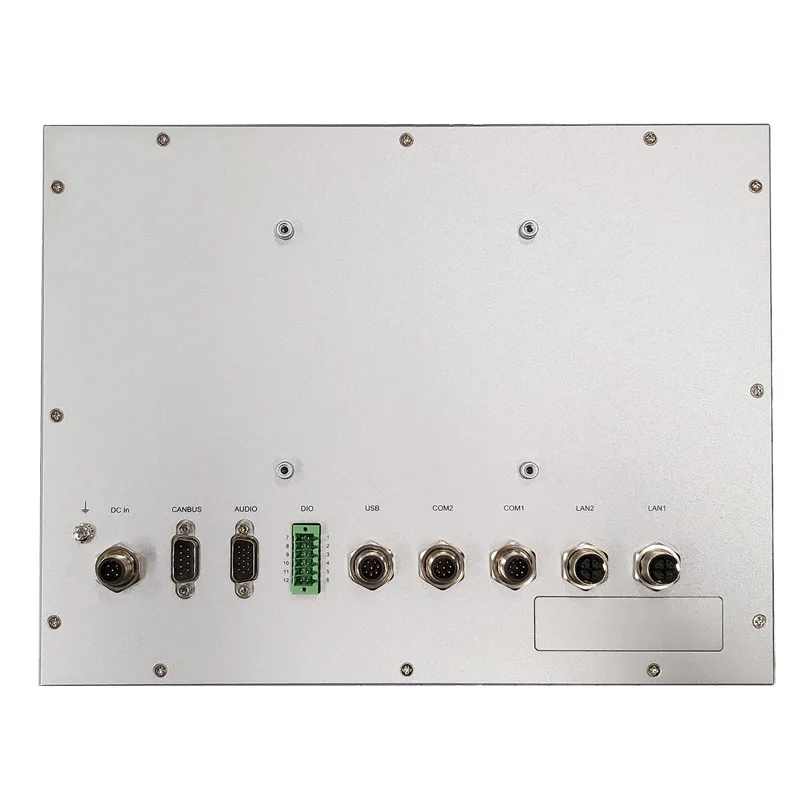

The EN 50155 railway touchscreen panel PC, GOT712S, is equipped with a 12.1-inch XGA TFT LCD with high brightness LED backlight (800 nits), which allows a train operator to easily read any operational status messages, even under direct sunlight. Designed for railway application, this all-in-one 12.1" touch panel PC supports various power input from 24 to 110 VDC. This feature-rich panel PC has an IP65-rated front bezel, M12 connectors and EN 50155 certified.
Wide Temperature (-40°C to +70°C)
The Intel Atom®-based railway panel PC, GOT712S, applies unique extended temperature technology with wide temperature range support as well as fanless operation. It also has a high brightness display and compact design for transport heavyduty environment.
Designed for Railway Application
The Axiomtek GOT712S is particularly suitable for demanding HMI applications in the railway sector, including tasks like monitoring and controlling speed, temperature, and security, or for fleet management. To ensure the reliable operation in a variety of different locations, the 12.1-inch railway panel PC supports various mounting options: wall mount and VESA mount. Moreover, it is also ready for Windows® 10 IoT, Windows® 10, and 7.
