Részletes műszaki adatok

• 15.6" WXGA TFT flat bezel LCD display
• IP66/IP69K-rated (NEMA 4) water/dust design
• Full stainless-steel enclosure with SUS 304
• -20°C to +50°C wide operating temperature range
• Fanless design with Intel® Core™ i5-1145G7E or Celeron® 6305E processor
• Wi-Fi kit for wireless network connectivity (optional)
• Supports VESA mount
• M12-type connectors for harsh environments
• Supports proximity and light sensors (optional)

Termékismertető

The 15.6-inch GOT815A-TGL-WCD is specially designed for food processing applications. Its IP66-rated stainless steel housing protects entire system from damage of water, powder and dust. It also supports a wide operating temperature range from -20°C to +50°C. Thus, this robust unit is specifically designed for high humidity, dusty or wet spaces in food factories or kitchens and more harsh applications.

Full IP66 and IP69K Certified

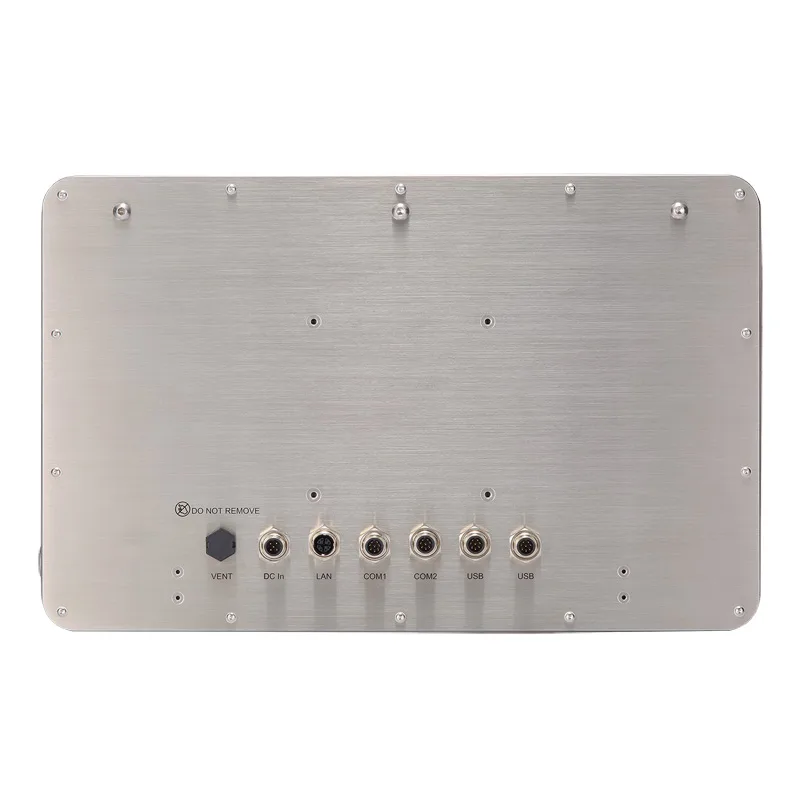

The GOT815A-TGL-WCD adopts a water/dust-proof housing design with five IP66-rated M12 I/O connectors and IP69K that ensures the product’s ability to resist ingress of high temperature and high pressure water. It was not only tested entire system IP66 by SGS and passed but also tested by a spray nozzle with high temperature water (+80°C), a flow rate of 14 to 16 L/min and a nozzle hold with distance 10 to 15 cm away from the device at angles of 0°, 30°, 60° and 90° for 30 seconds. The GOT815A-TGL-WCD is qualified to meet harsh-environment applications.

Wide Temperature (-20°C to +50°C) & Anti-vibration (1G) Design

The GOT815A-TGL-WCD featuring fanless and noiseless design supports a wide operating temperature range from -20°C to +50°C. Besides, the patent of antivibration for SSD ensures reliability and stability.
