Leírás

AXIOMTEK iNA200 – hálózatbiztonsági platform

AXIOMTEK iNA200 hálózatbiztonsági platform tűzfal-, VPN- és ipari átjáró feladatokhoz. A tömör, egységesített leírás a legfontosabb műszaki jellemzőket és alkalmazási területeket emeli ki.

Főbb jellemzők

• Processzor/platform: Intel Atom® x6212RE/x6414RE processzor (Elkhart Lake)
• Memória: DDR4-3200 SO-DIMM, legfeljebb 32GB
• Hálózat: 2 GbE LAN, 2 2.5GbE LAN, és 2 SFP
• Üzemi környezet: széles üzemi hőmérséklet -40°C – +70°C
• Tápellátás: széles tápbemenet 9 – 36V DC dual tápbemenet
• Hálózat: támogatás 5G M.2 Key B 3042/3052

Ajánlott felhasználás

Ipari tűzfal, VPN, UTM és biztonságos edge gateway.

Részletes műszaki adatok

• Intel Atom® x6212RE/x6414RE processor (Elkhart Lake)
• DDR4-3200 SO-DIMM, up to 32GB
• 2 GbE LAN, 2 2.5GbE LAN, and 2 SFP
• Wide operating temperature from -40°C to +70°C
• Wide power input of 9 to 36V DC with dual power input
• Supports 5G with M.2 Key B 3042/3052
• Supports TPM 2.0
• Ideal for OT field site cybersecurity and secured edge

Termékismertető

Higher Network Throughput

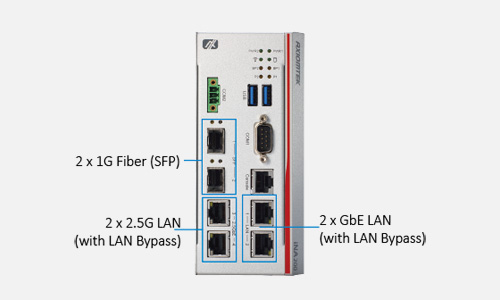

For the network interfaces, the iNA200 provides two GbE LAN ports with LAN Bypass, two 2.5G LAN ports with LAN Bypass and TSN function, and two 1G SFP (Intel® I210-IS) ports.

Great Expandability

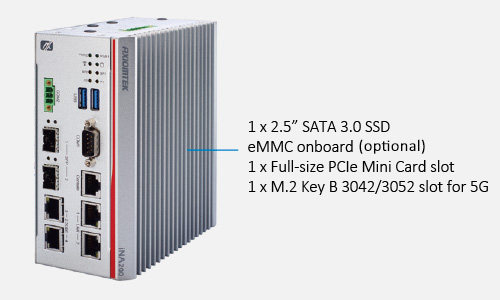

The iNA200 has one 2.5” SATA 3.0 SSD and eMMC onboard (optional) for storage. It also supports one full-size PCIe Mini Card slot (USB + SATA interface) and one M.2 Key B 3042/3052 slot (PCIe + USB interface) for wireless modules.



Low Power yet Boosted Performance

The iNA200 is powered by the Intel Atom® x6212RE or x6414RE processor (codename: Elkhart Lake) and has one DDR4-3200 SO-DIMM for up to 32GB of system memory.

Rugged & Reliable Design

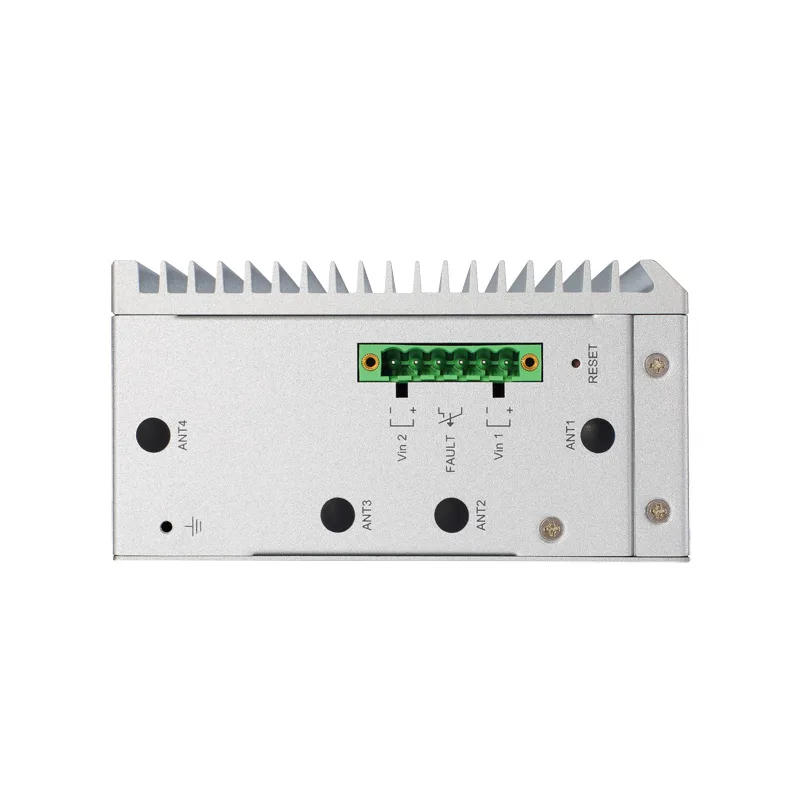

For demanding rugged environments, the fanless IIoT edge gateway iNA200 comes with a wide operating temperature range of -40°C to 70°C and supports wide power input of 9 to 36 VDC with dual power input.

Rich I/O Interfaces

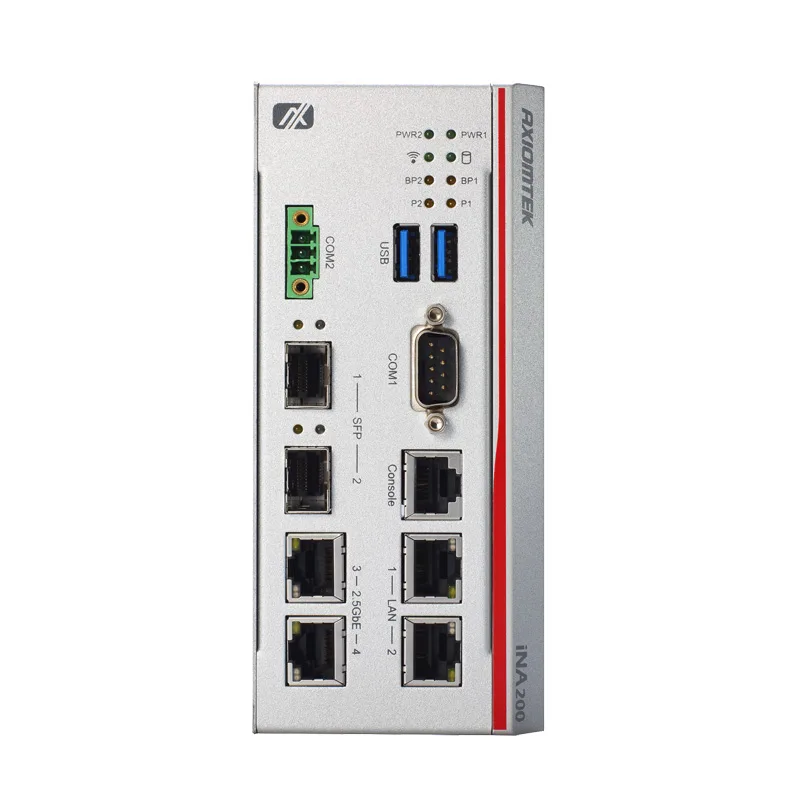

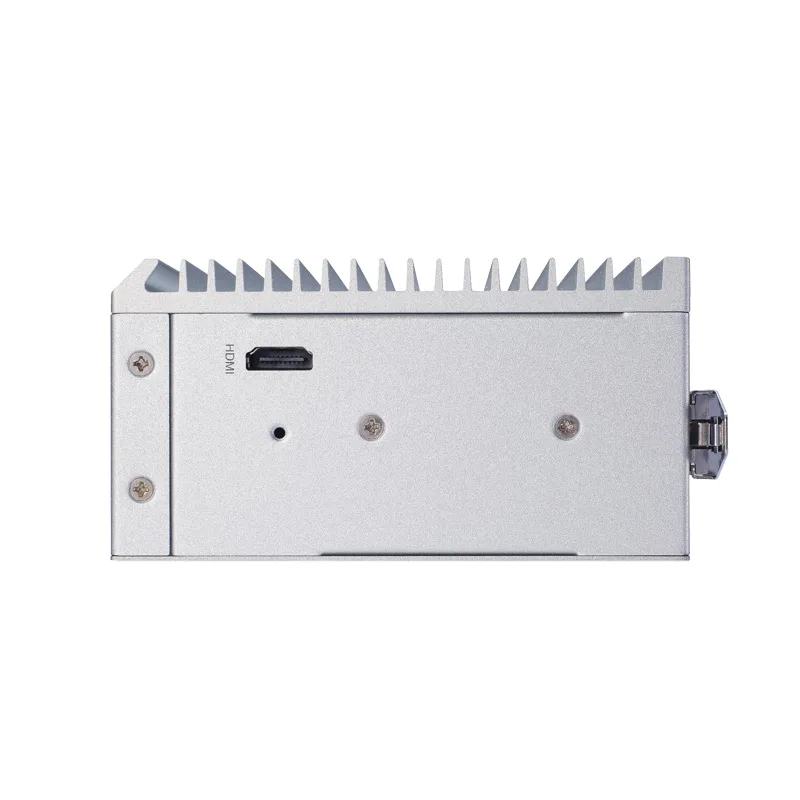

I/O options include two GbE LAN ports, two 2.5G LAN ports, two 1G SFP (Intel® I210-IS) ports, one HDMI, two USB 3.1 ports, one COM port (RS-232/422/485) with DB9 type, one COM port (RS-485) with 3-pin terminal block, one tact switch, four antenna holes, one power input connector, and one console port (RJ-45).
