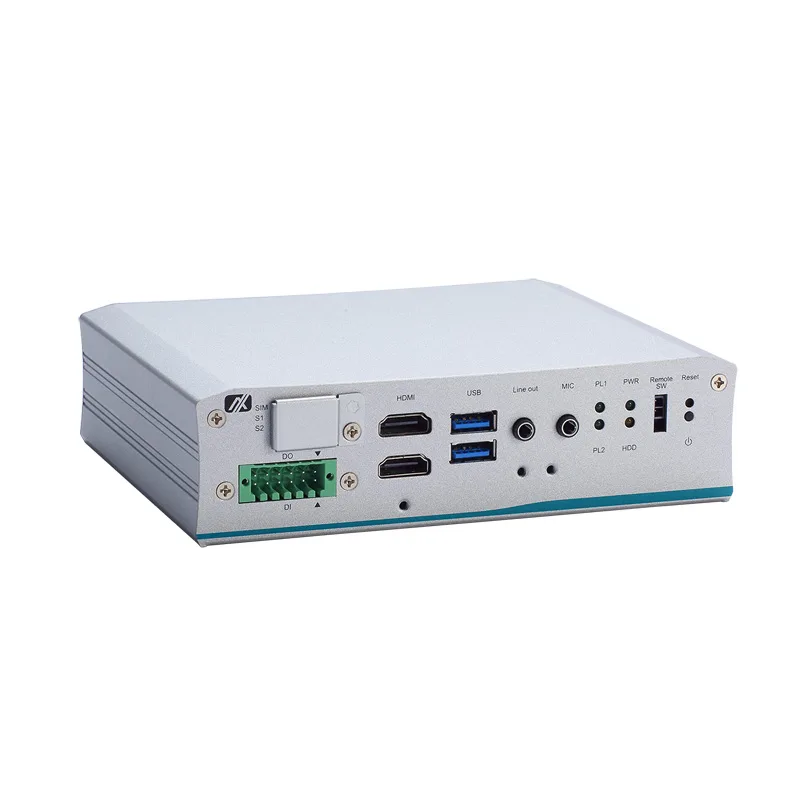

AXIOMTEK tBOX110 – közlekedési ipari számítógép

AXIOMTEK tBOX110 közlekedési ipari számítógép járműfedélzeti és pálya menti adatfeldolgozáshoz. A tömör, egységesített leírás a legfontosabb műszaki jellemzőket és alkalmazási területeket emeli ki.

Főbb jellemzők

• Ipari védelem: CE, FCC, LVD, EN 45545-2 és EN 50155 tanúsított; ISO7637-2 megfelelőség
• Üzemi környezet: széles üzemi hőmérséklet -40°C – +70°C (EN 50155 OT4)
• Tápellátás: széles tartomány 9 – 36VDC és full tartomány 24 – 110VDC (EN 50155 megfelelőség) tápbemenet
• Tápellátás: intelligens gyújtásvezérlés safe shutdown és vehicle battery védelem
• Csatlakozók: kompakt méret rich I/O connectivity, TPM2.0 támogatott

Ajánlott felhasználás

Flottakezelés, videófelügyelet, átjáró és utastájékoztatás.

Részletes műszaki adatok

• CE, FCC, LVD, EN 45545-2 and EN 50155 certified; ISO7637-2 compliant
• Wide operating temperatures from -40°C to +70°C (EN 50155 OT4)
• Wide range 9 to 36VDC and full range 24 to 110VDC (EN 50155 compliant) power input
• Smart ignition for safe shutdown and vehicle battery protection
• Compact size with rich I/O connectivity, TPM2.0 supported

Termékismertető

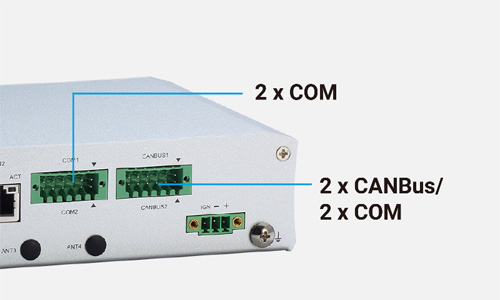

Diverse Communication Options

The highly integrated transportation PC combines diverse communication interfaces, including two COM, two CANBus (two COM for option), and one DIO.

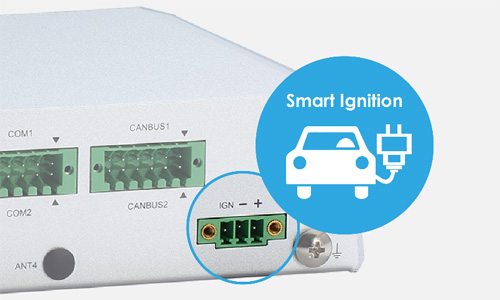

Smart Ignition Support

Equipped with smart ignition power control, the tBOX110 enables to schedule power on/off events to protect the vehicle battery from unstable voltage and supports different power modes.

Comprehensive Transportation Gateway Solutions

Axiomtek's tBOX110 offers comprehensive transportation gateway solutions. Catering to a wide range of applications, from in-vehicle to railway. This transportation-grade embedded system not only meets ISO 7637-2 standards but also has full certification to EN 45545-2 and EN 50155. By choosing the tBOX110. Customers can benefit from significant cost savings and reduced waiting time, since they have no longer needed to bear verification fees or lengthy certification processes. This makes the tBOX110 a highly efficient and reliable choice for transportation-related projects

Compact Size and Low Power

The tBOX110 is designed with low power consumption and heavy-duty construction that can withstand challenging day-to-day operational conditions. The DIN-rail and wall-mountable tBOX110 measures only 164 x 128 x 44 mm and weighs 1.0 kg.

Rugged Design

The tBOX110 has a wide operating temperature range of -40°C to +70°C and 3Grms vibration resistance. It supports 12/24 VDC typical automotive power input with smart ignition, or 24 to 110 VDC for railway use. A wide-range 9 to 36V DC power input for general purposes. Equipped with smart ignition power control, and tBOX110 enables to schedule power on/off events to protect the vehicle battery from unstable voltage and supports different power modes.

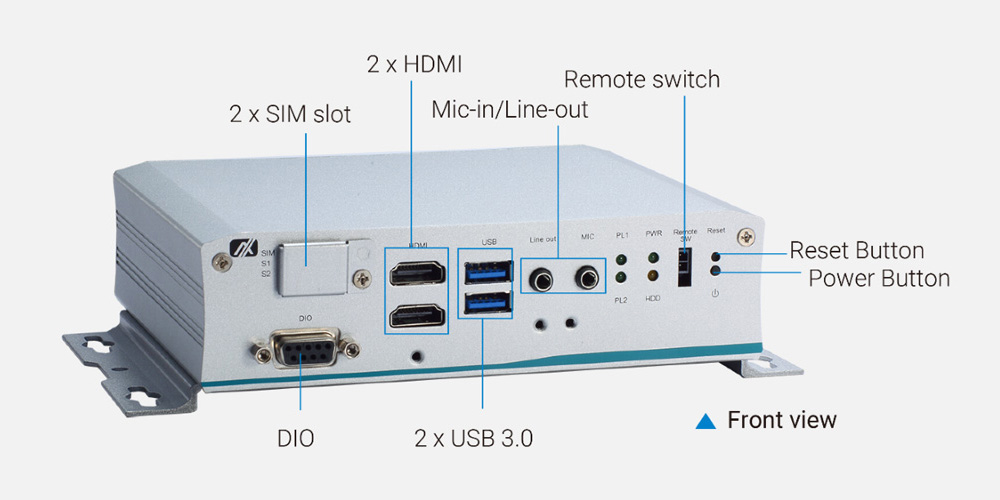

Rich I/O Interfaces

The tBOX110 has two COM, two CANBus, two RS-232/422/485 with shield grounding, two RJ-45 LAN ports, two USB 3.0 ports, two HDMI 1.4b with keylock, one Mic-in, one Line-out, one DB9 8-bit programmable DIO, one power input with smart ignition.
