Model

– HBFDF20-6412-B (Default) / HBFDF20I-6412-B (Default, WiFi)
– HBFDF20-6412-T (TPM) / HBFDF20I-6412-T (TPM, WiFi)
– HBFDF20-6412-E (64GB EMMC) / HBFDF20I-6412-E (64GB EMMC, WiFi)
– HBFDF20-6412-Q (64GB EMMC, TPM) / HBFDF20I-6412-Q (64GB EMMC, TPM , WiFi)

Model

– MF20-00B (J6412 CPU_10W, Default)
– MF20-02B (J6412 CPU_10W, TPM2.0)
– MF20-03B (J6412 CPU_10W, EMMC)
– MF20-07B (J6412 CPU_10W, 32GB EMMC, TPM2.0)

CPU/Chipset

– Intel® Elkhart Lake SoC Processor (Default: J6412, TDP 10W)

BIOS

– AMI Flash ROM

Memory

– 1* DDR4 3200MHz SO-DIMM up to 32GB

Network

– 2* Intel® i225LM 2.5GbE

Graphics

– Intel® HD Graphics, shared memory
– 2* HDMI (Max Resolution: 4096×2160@60Hz)

Storage

– 1* M.2 M-key (2242/2280, PCIe Gen.3 x2/SATA interface) support NVME
– 1* 2.5” SATAIII 6Gb/s internal drive bay (Max. Height 9.5 mm)
– 64GB eMMC onboard (option)

Expansion

– 1* M.2 E-key (2230, PCIe Gen.3 x1/USB2.0 interface)
– 1* M.2 B-key (3042,USB3.1 /USB2.0 interface W/SIM card slot )
– TPM onboard (option)

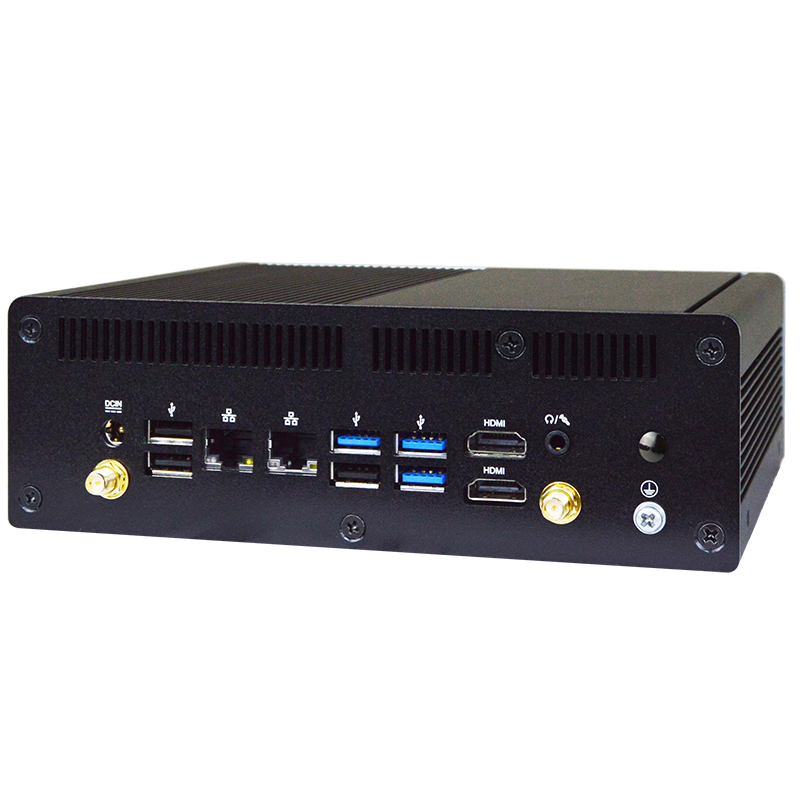

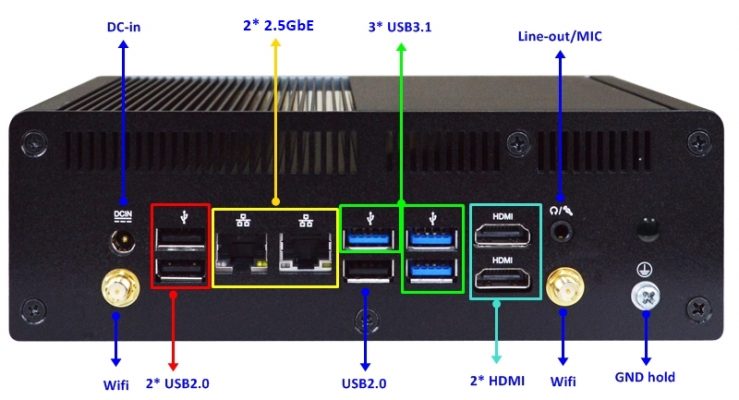

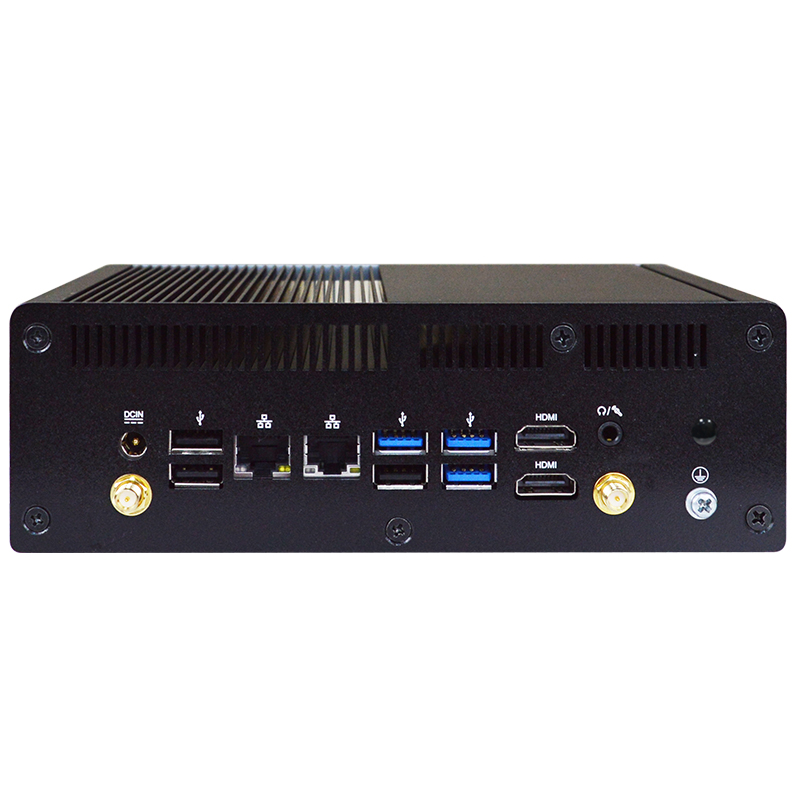

Rear Panel I/O

– 3* USB3.1 (Gen2)
– 3* USB2.0
– 2* HDMI
– 2* RJ45
– Line-out/MIC combo jack
– 1* DC in

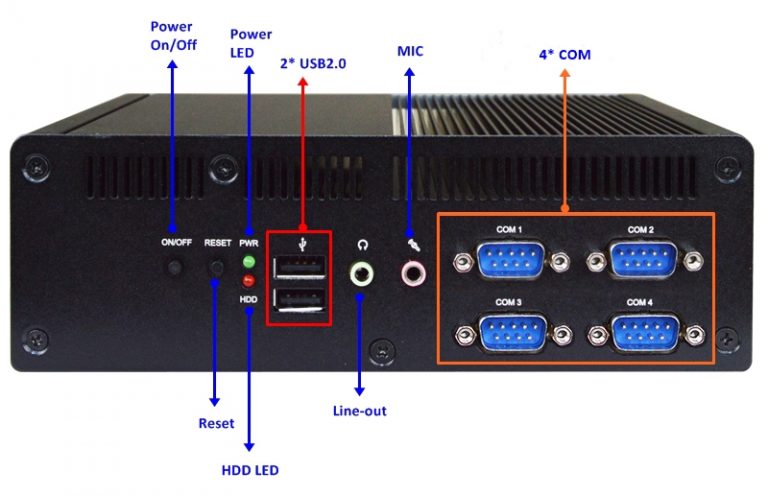

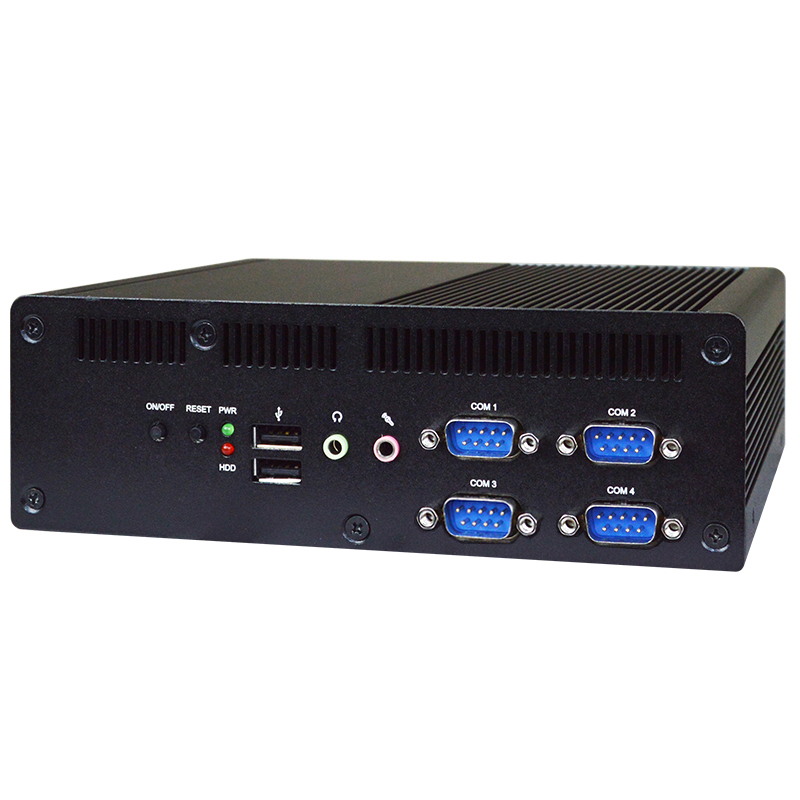

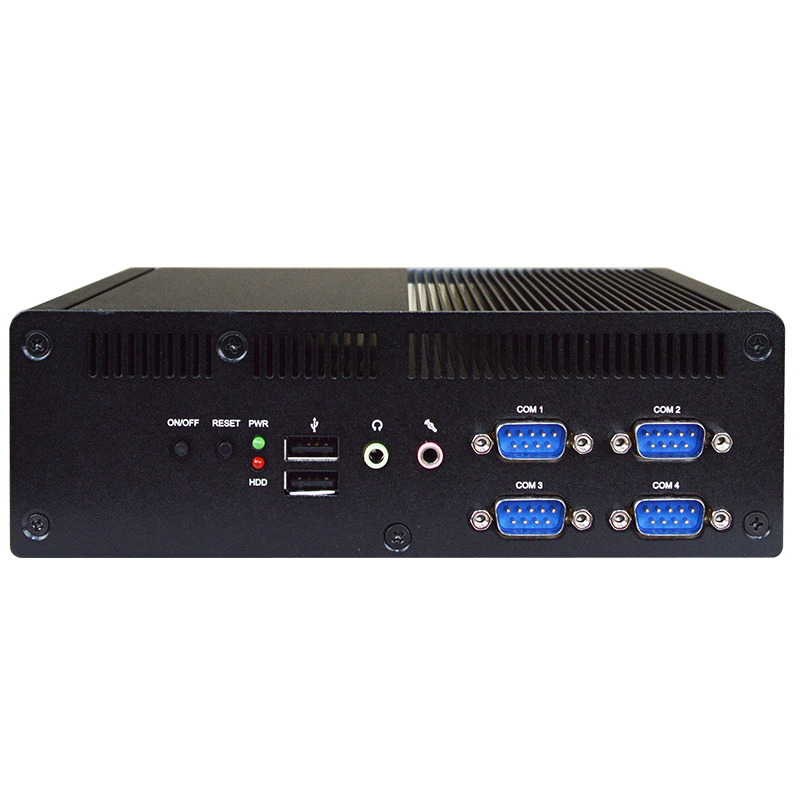

Front Panel I/O

– 1* Power SW, 1* Reset
– 1* Power LED, 1* HDD LED
– 1* MIC
– 1* Line-out
– 4* COM (COM1 support RS485)
– 2* USB2.0

Internal Connector

– SIM Card Holder

Power Source

– Adapter : AC 90~240V input / DC12V_60W output
– MB : DC12~24V input

Compliance

– CE, FCC, LVD, RoHS, ErP Ready

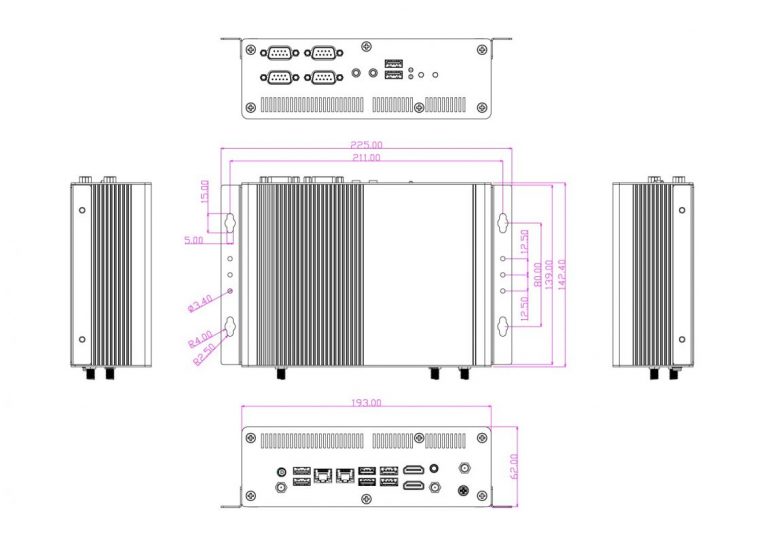

Dimensions

– System: 193 (W) x 142.4 (D) x 62 (H) mm
– Color Box dimension: 250 (W) * 118 (D) * 295 (H) mm
– Net Weight: 2.2KG
– Gross Weight: 3.5KG

Temperature

– Operating Temperature: -20 ~ 60° C
– (Under the condition of using M.2 interface SSD)
– Operating Temperature: 0 ~ 50° C
– (Under the condition of using 2.5” SATA HDD)
– Storage Temperature: -40 ~ 85° C
– Humidity: 10% ~ 95% RH @40°C (non-condensing)

OS Support

– Windows 11, Linux

Warranty

– 2 Year limited warranty
